Rather than using the ggplot2¹, it is much easier to make swarm plots using the swarmplot package². The plot is similar to a strip plot with jitter, but the graphical presentation is more elegant.

For this example, download and open the strip.rda dataset and open it in R. The data set contains the maximum flexion in 20 patients before and after a manipulation under anaesthesia. The data can be shown by:

strip
   Flexion  MUA
1       94  Pre
2       95  Pre
.....
.....
39     113 Post
40      86 Post

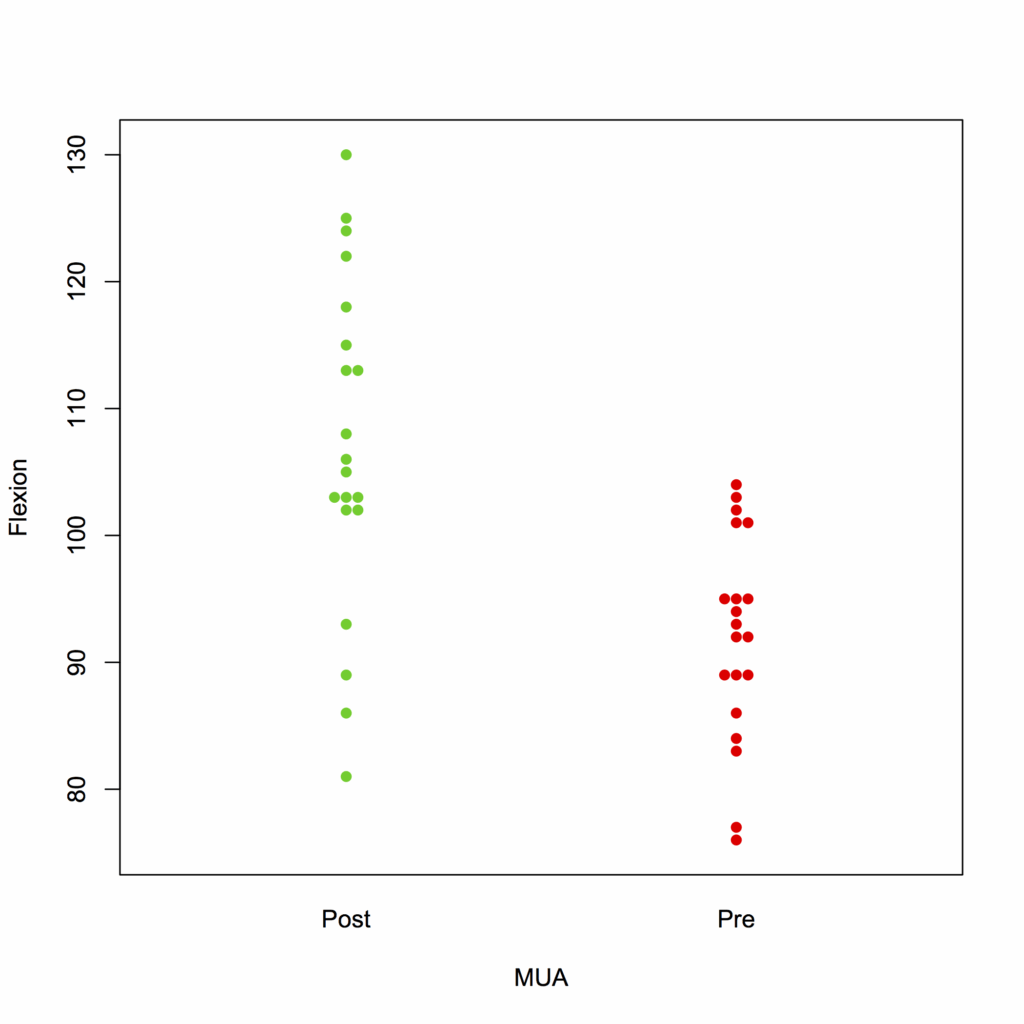

To create a swarm plot:

library(beeswarm)
beeswarm(Flexion ~ MUA, data = strip, col = 3:2, pch = 16 )

For further option, please refer to the package manual³ manual.

References

↑ « ggplot. had.co.nz » on had.co.nz (read on 2010-09-19)

↑ Aron Eklund, « beeswarm: The Bee Swarm Plot, an Alternative to Stripchart », 2016-04-25

↑ 2J55DA3N[/zref”].

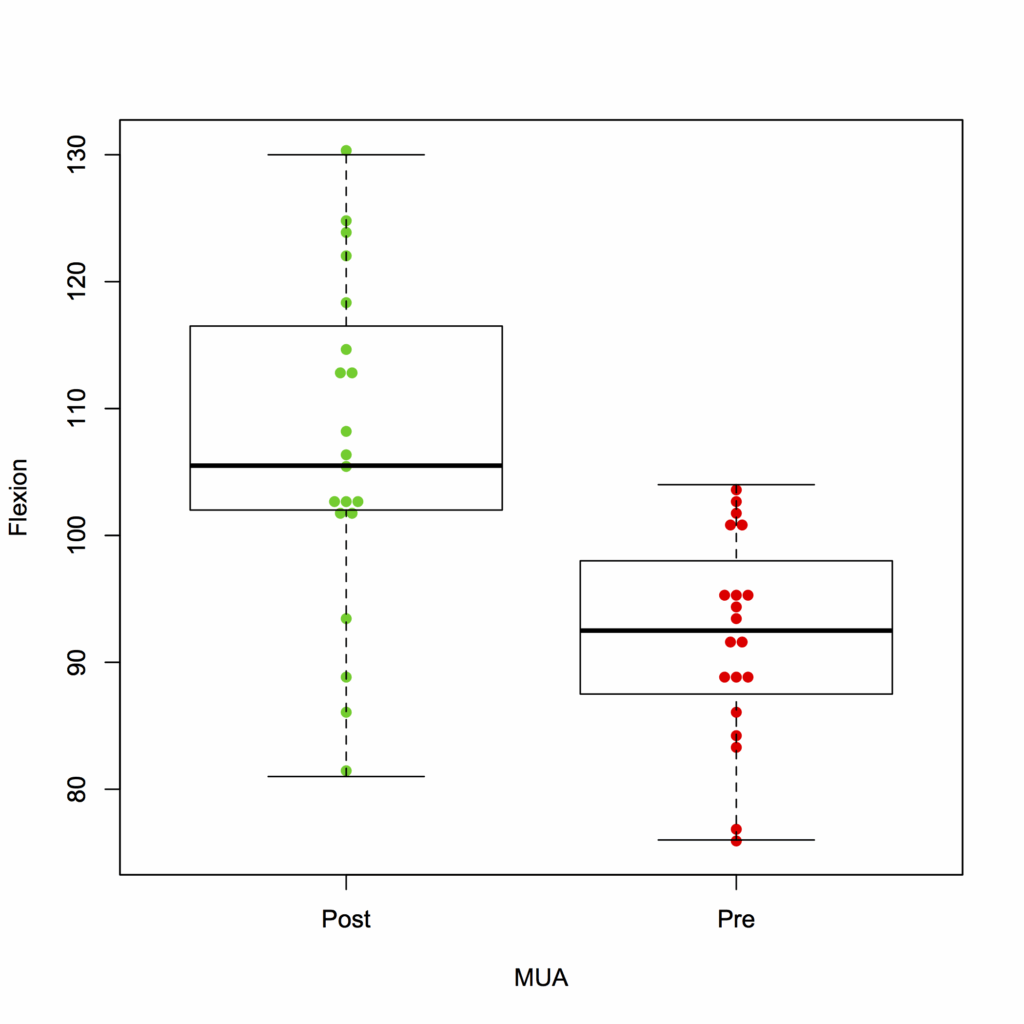

A swarm plot can also be combined with a box plot:

boxplot(Flexion ~ MUA, data = strip)
beeswarm(Flexion ~ MUA, data = strip, col = 3:2, pch = 16, method = 'center', add = TRUE )

The boxplot call should be first, so the swarm plot is placed on top of the boxplot.

The ggbeeswarm package had better integration with ggplot2 for more versatile plots.

A swarm plot can also be used to visualise survival data as described in the survival chapter.

Download the plotsurvival.rda dataset for this example. The data frame is called plotsurvival and the variables are: number (patient number), fu (continuous; follow up time), group (categorical data; Hip 1 or Hip 2) and censor (binary outcome variable). To show the data:

plotsurvival
   number   fu group censor
1       1  5.2 Hip 1      0
2       2  6.3 Hip 1      0
3       3  7.0 Hip 1      0
4       4  8.5 Hip 1      0
5       5  9.4 Hip 1      0
6       6 10.1 Hip 1      0
7       7 11.2 Hip 1      0
8       8 12.0 Hip 1      0
9       9 12.5 Hip 1      1
10     10 12.7 Hip 1      0
11     11  4.5 Hip 2      1
12     12  5.8 Hip 2      0
13     13  6.9 Hip 2      0
14     14  7.8 Hip 2      1
15     15  8.2 Hip 2      1
16     16  8.9 Hip 2      1
17     17  9.5 Hip 2      1
18     18 10.2 Hip 2      0
19     19 11.5 Hip 2      0
20     20 12.9 Hip 2      0

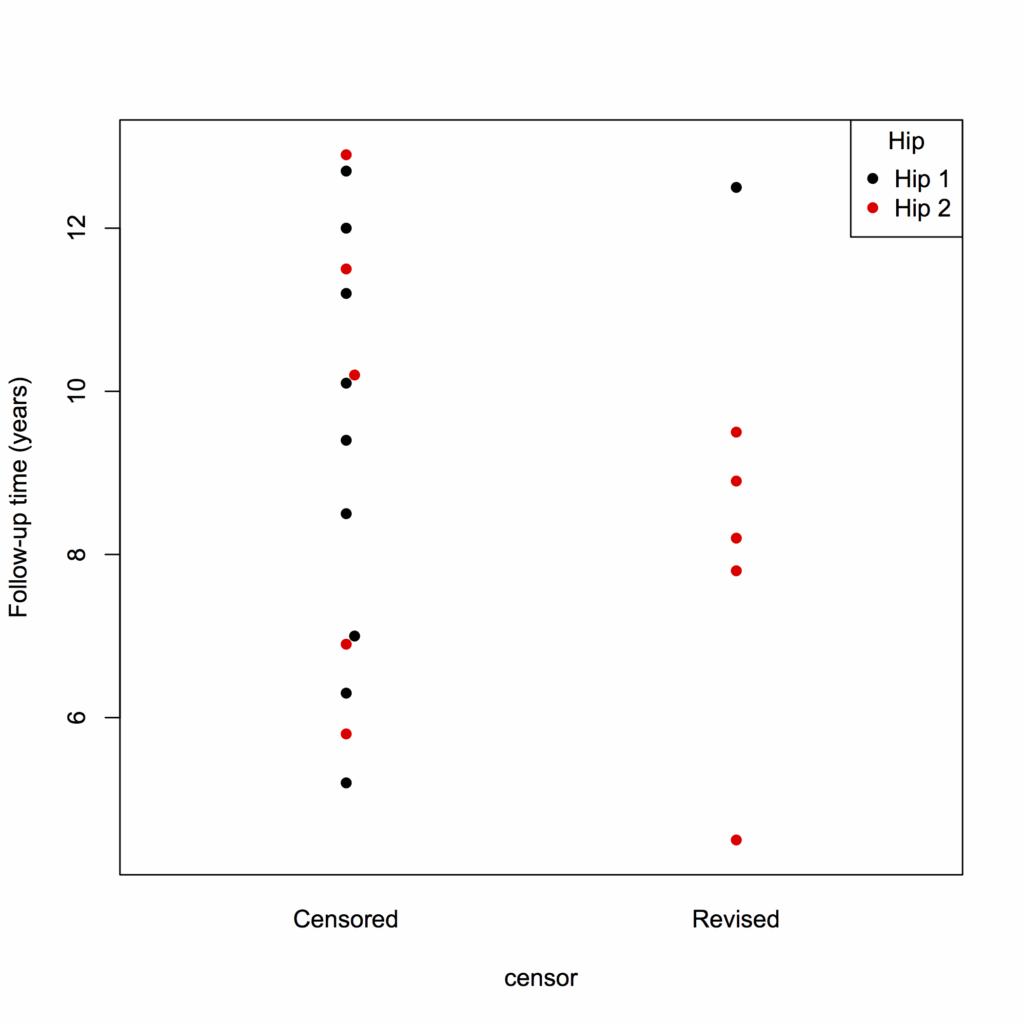

To create a swarm plot of the data, with Hip 1 in black and Hip 2 in red:

library(beeswarm)
beeswarm(fu ~ censor, data = plotsurvival, pch = 16, pwcol = group, ylab = 'Follow-up time (years)', labels = c('Censored', 'Revised'))
legend('topright', legend = levels(plotsurvival$group), title = 'Hip', pch = 16, col = 1:2)

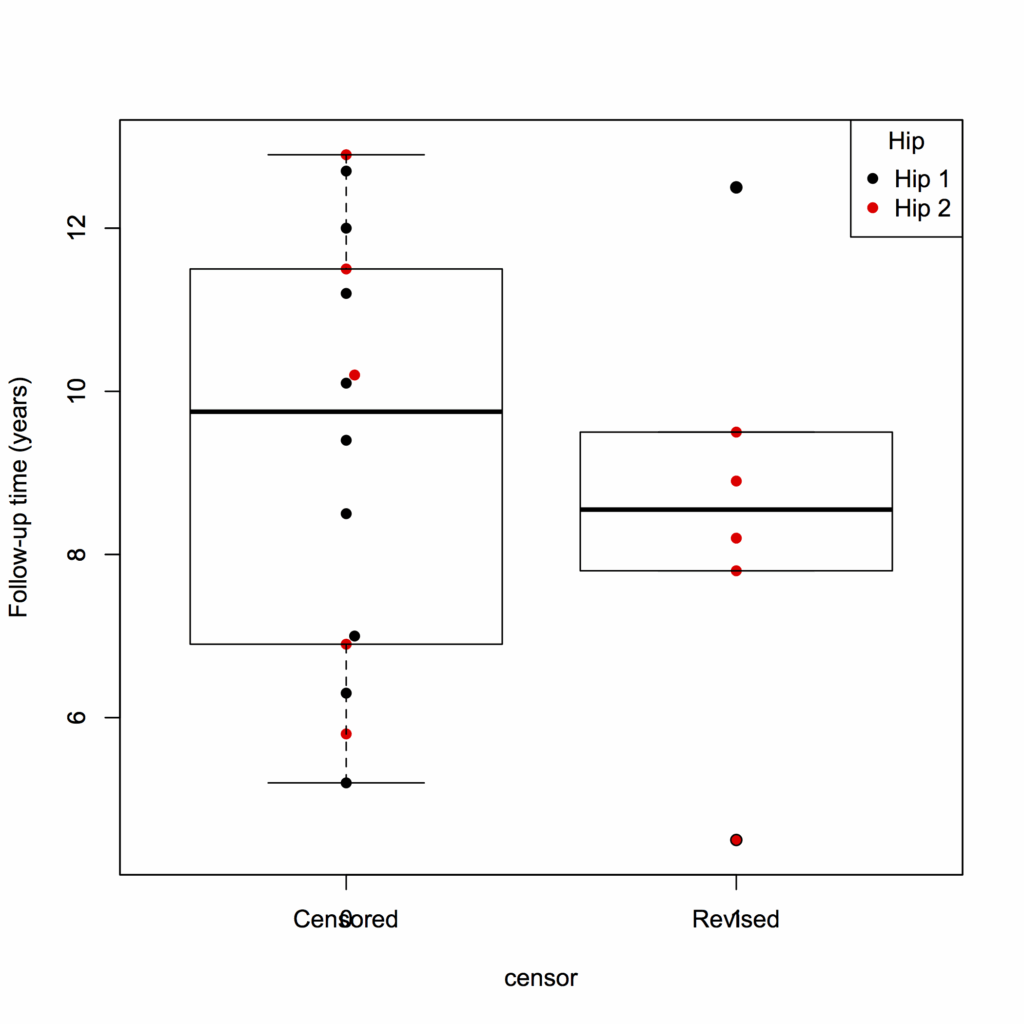

To add a box plot.

library(beeswarm)
boxplot(fu ~ censor, data = plotsurvival)
legend('topright', legend = levels(plotsurvival$group), title = 'Hip', pch = 16, col = 1:2)
beeswarm(fu ~ censor, data = plotsurvival, pch = 16, pwcol = group, ylab = 'Follow-up time (years)', labels = c('Censored', 'Revised'), add = TRUE)

For further options, please refer to the beeswarm[zref]2J55DA3N
